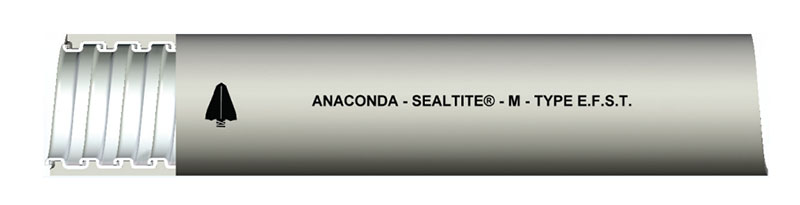

34301, Type EFST – Flexible All Purpose Liquid-Tight Flexible Metal Conduit (LFMC)

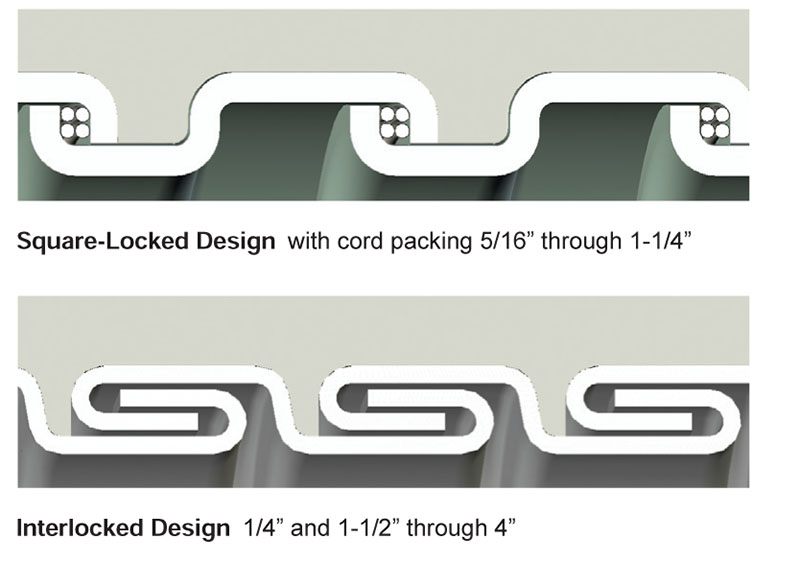

Conduit shall be Anaconda SEALTITE® Type EFST. Conduit shall provide a fl exible liquid-tight raceway for wiring and shall be constructed of continuously interlocked hot dipped zinc galvanized steel core with sunlight resistant PVC outer jacket. Type EFST conduit shall be used for applications where agency approvals are not required. Conduit IP 67 rated when installed with approved end connectors.

SPECIFICATIONS

Type	EFST
Electrical Trade Size	3-1/2 in 91 mm
Length	25 ft 7.62 m
Packaging	Standard Package
Inside Diameter	3.500 to 3.540 in 88.900 to 89.916 mm
Outside Diameter	3.960 to 4.000 in 100.584 to 101.600 mm
Approx. Inside Bend Radius	16 in 406.4 mm
Approx. Weight per 100 ft	314 lbs 142.43 kg
Color	GRAY
Optional Colors	Black
Certifications	RoHS WEEE
Cross-Reference #	28505 LA-350 LT-350

INSTALLATION

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.
Delivers superior wiring protection where agency approvals are not required.
Manufactured in a full range of trade sizes from 1/4″ through 6″. Conduit sizes 2-1/2″, 3″, 3-1/2″, and 4″ are Type UA/EFST.
Smooth appearing jacket for exposed applications.
Rated for temperature range of -4ºF to +176ºF (20ºC to +80ºC).
Provides liquid-tight raceway for electrical conductors.

APPLICATION

Designed for General Construction Grade Applications
Temperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Anaconda Sealtite
