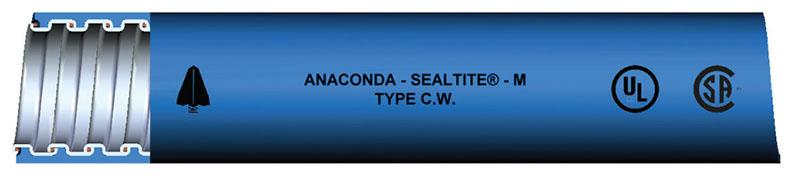

34522, Type CW – Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC)

Thermoplastic PVC jacket with integral bonding wire 1/2″ through 1-1/4″

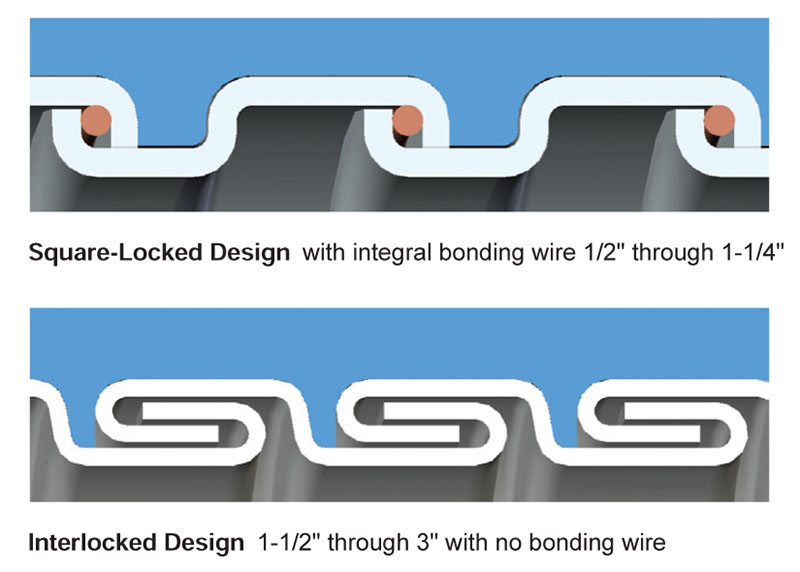

Conduit shall be Anaconda SEALTITE® Type CW. Conduit shall provide a flexible liquid-tight raceway for wiring and shall be constructed of continuously interlocked hot dipped zinc galvanized steel core with an integral bonding wire in sizes 1/2″ thru 1-1/4″. Conduit shall have a sunlight resistant and flame retardant PVC jacket in electrical trade sizes 1/2″ thru 3″. Conduit shall be UL listed, CSA certified and IP 67

SPECIFICATIONS

Type	CW
Electrical Trade Size	3/4 in 21 mm
Length	100 ft 30.48 m
Packaging	Standard Carton
Inside Diameter	0.820 to 0.840 in 20.828 to 21.336 mm
Outside Diameter	1.030 to 1.050 in 26.162 to 26.670 mm
Approx. Inside Bend Radius	5 in 127 mm
Approx. Weight per 100 ft	44 lbs 19.96 kg
Color	BLUE
Note	Other colors available upon request. 3/8″ & 4″ trade sizes available on special order.
Certifications	UL Listed & CSA Certified
Cross-Reference #	221014 55-09-35-04 6403-30-00 CB CBLA-12 CBLT-3/4 ULBLUE

INSTALLATION

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.
Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC).
Approved as an equipment grounding conductor in sizes 1/2″ through 1-1/4, if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 1/2″ and 60 amps or less for 3/4″ through 1-1/4″.
Suitable for use in hazardous locations per NEC Articles 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2.
Manufactured in a full range of trade sizes from 1/2″ through 3″.
Approved for direct burial and in concrete trade sizes 1/2″ through 3″.
Complies with UL Standard 360 File No. E18917; CSA C22.2 File No. 158897; and NEC Article 350.

NEC ARTICLES

Article 250.118 (6) Equipment Grounding
Article 300.22 (D) Information Technology Equipment
Article 350 Liquid-Tight Flexible Metal Conduit (LFMC)
Article 501.10 (B) (2) Class I Div. 2
Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2
Article 503.10 (A) (3) and (B) Class III Div. 1 & 2
Article 620.21 Elevator Wiring Methods
Article 645.5 (E) (2) Under Raised Floors

APPLICATION

Computer Wiring Meets Requirements of NEC
Temperature Range: -40°F to +176°F (-40°C to +80°C)
