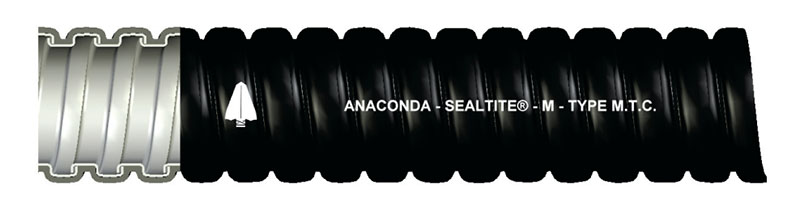

38354, Type MTC – Machine Tool Conduit Liquid-Tight Flexible Metal Conduit (LFMC)

Thermoplastic PVC jacket

Conduit shall be Anaconda SEALTITE® Type MTC. Conduit shall provide a flexible liquid-tight raceway for wiring and shall be constructed of continuously interlocked hot dipped zinc galvanized steel core with sunlight resistant PVC outer jacket. Type MTC conduit shall be used for applications where agency approvals are not required. Conduit IP 67 rated when installed with approved end connectors.

SPECIFICATIONS

Type	MTC
Electrical Trade Size	1-1/2 in 41 mm
Length	150 ft 45.72 m
Packaging	Small Reels
Inside Diameter	1.570 to 1.595 in 39.878 to 40.513 mm
Outside Diameter	1.830 to 1.860 in 46.482 to 47.244 mm
Approx. Inside Bend Radius	4 in 101.6 mm
Approx. Weight per 100 ft	70 lbs 31.75 kg
Color	BLACK
Certifications	RoHS WEEE

Cross-Reference #	89252 MTLT MTLT-1-1/2 VJC-15

INSTALLATION

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.
Delivers superior wiring protection where agency approvals are not required.
Manufactured in a full range of trade sizes from 3/8″ through 2″.
Smooth appearing jacket for exposed applications.
Rated for temperature range of -4ºF to +140ºF (-20ºC to +60ºC).
Provides liquid-tight raceway for electrical conductors.

APPLICATION

Extra Flexible. For Use in Machine Centers and Robotics
Temperature Range: -4°F to +140°F (-20°C to +60°C)
