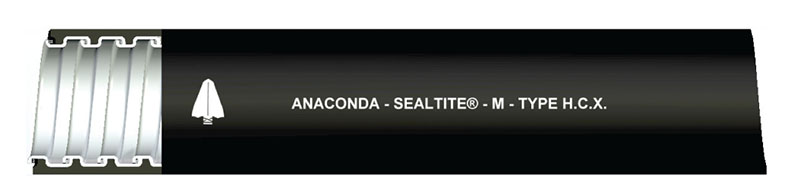

39102, Type HCX – Extreme Temperature Jacket Liquid-Tight Flexible Metal Conduit (LFMC)

Thermoplastic rubber jacket no bonding wire

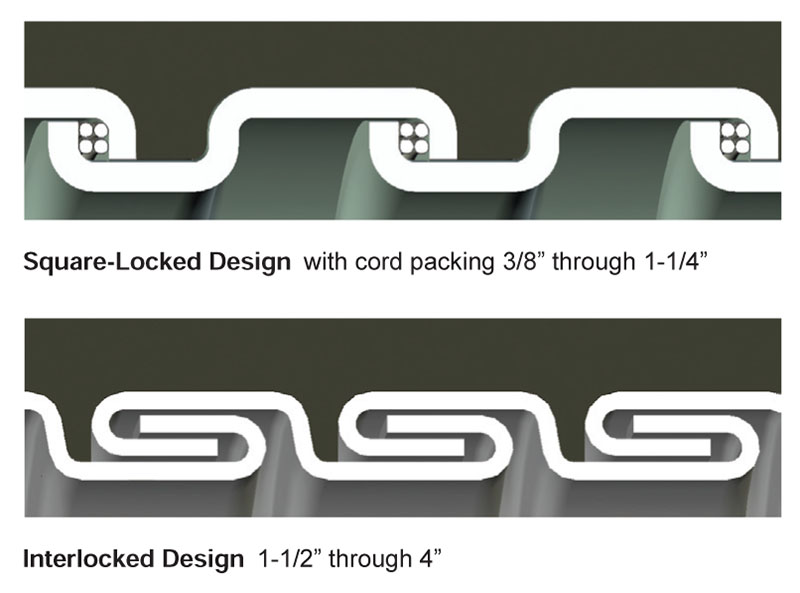

Conduit shall be Anaconda SEALTITE® Type HCX. Conduit shall provide a flexible liquid-tight raceway for wiring and shall be constructed of continuously interlocked hot dipped zinc galvanized steel core with sunlight resistant rubber outer jacket. Type HCX conduit shall be used for applications where agency approvals are not required. Conduit IP 67 rated when installed with approved end connectors.

SPECIFICATIONS

Type	HCX
Electrical Trade Size	3/8 in 12 mm
Length	100 ft 30.48 m
Packaging	Standard Carton
Inside Diameter	0.485 to 0.505 in 12.319 to 12.827 mm
Outside Diameter	0.690 to 0.710 in 17.526 to 18.034 mm
Approx. Inside Bend Radius	2.0 in 50.8 mm
Approx. Weight per 100 ft	21 lbs 9.53 kg
Color	BLACK
Note	Sizes above 2″ available on special order
Certifications	RoHS WEEE

Cross-Reference #	60201 6801-30-00 ATX-10 EXTREME TEMP

INSTALLATION

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.
Delivers superior wiring protection where agency approvals are not required.
Manufactured in a full range of trade sizes from 3/8″ through 4″.
Smooth appearing jacket for exposed applications.
Rated for temperature range of -76ºF to +302ºF (-60ºC to +150ºC).
Provides liquid-tight raceway for electrical conductors.

APPLICATION

Where Flexibility is Required in Extreme Temperature Environments
Temperature Range: -76°F to +302°F (-60°C to +150°C)

Anaconda Sealtite
