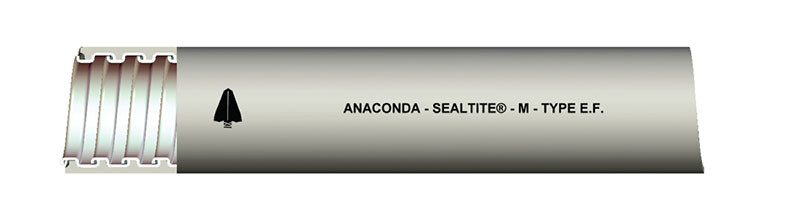

39411, Type EF – General Construction Grade Liquid-Tight Flexible Metal Conduit (LFMC)

Thermoplastic PVC jacket no bonding wire

Conduit shall be Anaconda SEALTITE® Type EF. Conduit shall provide a flexible liquid-tight raceway for wiring and shall be constructed of continuously interlocked hot dipped zinc galvanized steel core with sunlight resistant PVC outer jacket. Type EF conduit shall be used for applications where agency approvals are not required. Conduit IP 67 rated when installed with approved end connectors.

SPECIFICATIONS

Type	EF
Electrical Trade Size	1/2 in 16 mm
Length	200 ft 60.96 m
Packaging	Standard Carton
Inside Diameter	0.620 to 0.640 in 15.748 to 16.256 mm
Outside Diameter	0.820 to 0.840 in 20.828 to 21.336 mm
Approx. Inside Bend Radius	2.5 in 63.5 mm
Approx. Weight per 100 ft	19 lbs 8.62 kg
Color	GRAY
Note	Standard SEALTITE® Type EFST is recommended in sizes above 2″
Certifications	RoHS WEEE
Cross-Reference #	EF-11 EFLT EFLT-1/2 EXLT EXLT-1/2

INSTALLATION

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.
Delivers superior wiring protection where agency approvals are not required.
Manufactured in a full range of trade sizes from 3/8″ through 2″.
Smooth appearing jacket for exposed applications.
Rated for temperature range of -4ºF to +176ºF (20ºC to +80ºC).
Provides liquid-tight raceway for electrical conductors.

APPLICATION

Designed for General Construction Grade Applications
Temperature Range: -4ºF to +140ºF (-20ºC to +60ºC)
