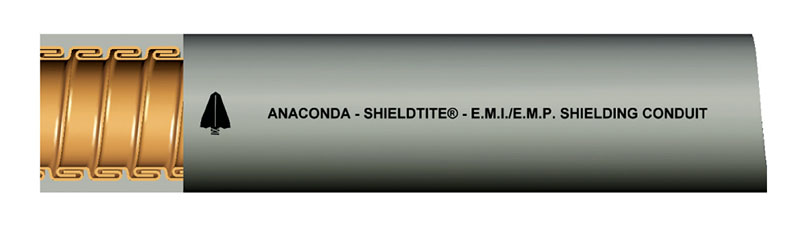

450210-0140, SHIELDTITE® – EMI/EMP for High Level Shielding Liquid-Tight Flexible Metal Conduit (LFMC)

Thermoplastic PVC jacket

Conduit shall be Anaconda SEALTITE® Type SHIELDTITE®. Conduit shall have smooth cover and be constructed with bronze core of high level shielding. Conduit shall meet Mil-STD-1310D for EMI and EMP shielding effectiveness of 81 – 119 Db at 1 Megahertz to 1 Gigahertz. Conduit shall be suitable for use within an operating temperature range of -51ºF to +221ºF (-46ºC to 105ºC).

Available in Random Lengths

SPECIFICATIONS

Type	SHIELDTITE®
Electrical Trade Size	1-1/2 in 41 mm
Length	Custom
Packaging	Contact Anamet
Inside Diameter	1.575 to 1.600 in 40.005 to 40.64 mm
Outside Diameter	1.865 to 1.900 in 47.371 to 48.26 mm
Approx. Inside Bend Radius	7.0 in 177.8 mm
Approx. Weight per 100 ft	96 lbs 43.545 kg
Color	GRAY
Note	Available in Random Lengths
Certifications	RoHS WEEE
Cross-Reference #	78852 78854 EMS-15

INSTALLATION

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.
Meets Mil-STD-1310D for EMI and EMP shielding.
Smooth interior surface protects sensitive conductors from harm.
Provides shielding effectiveness of 81 – 119 Db at 1 Megahertz to 1 Gigahertz.
Rated for temperature range from -51ºF to + 221ºF (-46ºC to +105ºC).

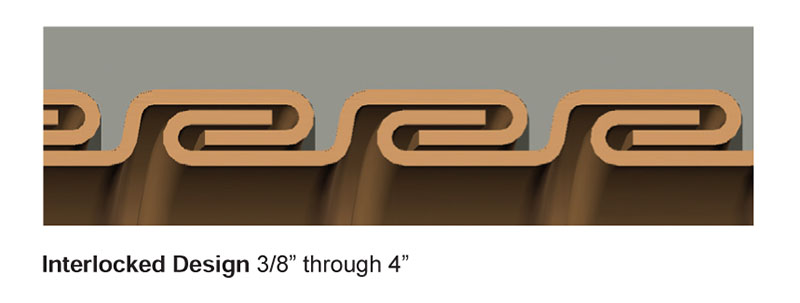

Manufactured in a full range of sizes from 3/8″ through 4″.
Available in custom-cut lengths.

APPLICATION

For High Level RFI and EMI Shielding
Temperature Range: -51ºF to +221ºF (-46ºC to +105ºC)
