452110, Type DE-710 – Heavy-Duty Component Very flexible for OEM and Industrial Application

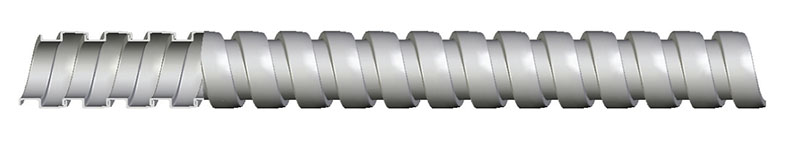

Unjacketed flexible steel conduit

Heavy-Duty conduit very flexible for OEM and Industrial applications. Conduit shall be Anaconda Type DE-710. Conduit shall be constructed of continuously interlocked hot dipped zinc galvanized steel core for exceptional crush and corrosion resistance. Conduit shall be UL recognized as a part of a manufactured wiring system.

Random Length Coils. Longer length reels available on request – consult factory.

SPECIFICATIONS

Type	DE – 710
Nominal Size	7/16 in 11 mm
Length	Custom
Packaging	Contact Anamet
Inside Diameter	0.437 to 0.462 in 11.100 to 11.735 mm
Outside Diameter	0.581 to 0.606 in 14.757 to 15.392 mm
Approx. Inside Bend Radius	1.5 in 38.1 mm
Approx. Weight per 100 ft	13 lbs 5.90 kg
Note	Longer length reels available on request – consult factory.
Certifications	RU Certification

Cross-Reference #	55-28-35-01 93402 AFS-7/16 FlexCon Extra SLINKY FLEX USL-716

INSTALLATION

Used in office furnishings, work stations and partitions.
Exceptional flexibility for tight “U” bend radius.
Complies with UL Recognized File No. E-39679; DXUZ2.

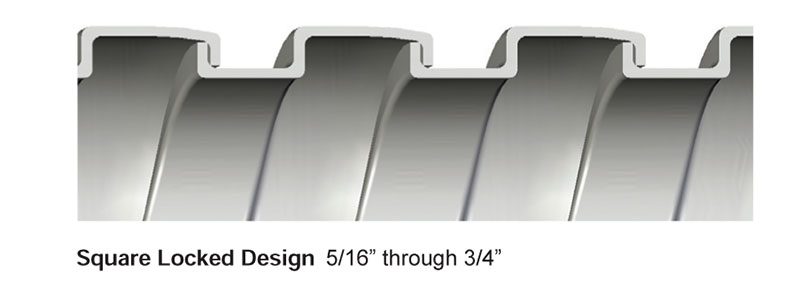

Size range, actual I.D. 5/16″ through 3/4″.
Available in custom-cut lengths.
+450ºF maximum temperature.

NEC ARTICLES

Article 604 Manufactured Wiring Systems

APPLICATION

Extra Flexible
Extra Strength
+450°F Maximum Temperature
